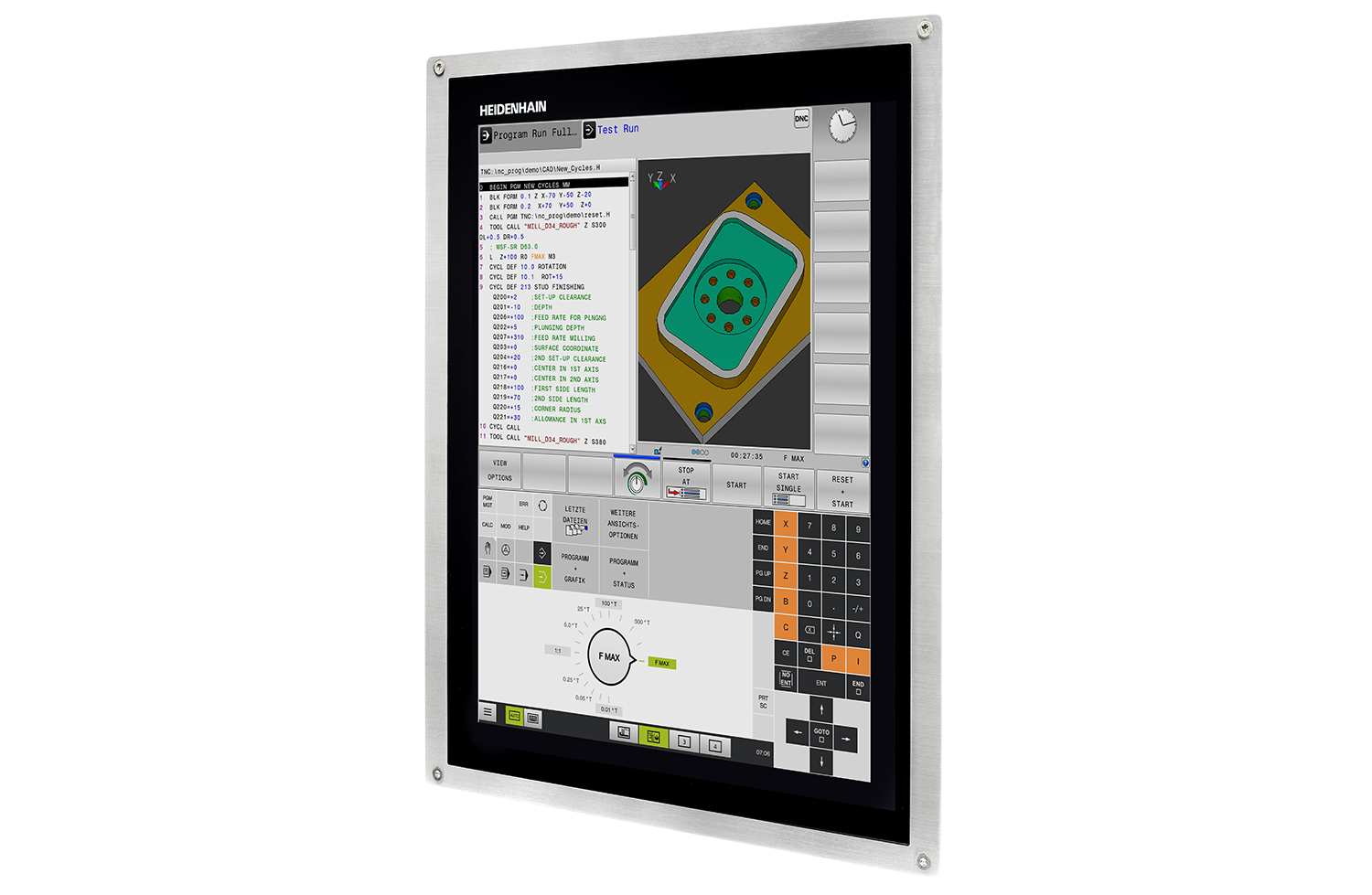

TNC 620 contouring control

Compact performance class

  • 8 control loops, including up to 2 spindles
  • Multi-touch screen
  • Convenient programming in HEIDENHAIN Klartext or with G codes
  • Extensive machining and touch-probe cycle packages
  • High surface quality with short machining times
  • Special function for rapid 3D machining
  • Fast block processing time (1.5 ms)

Optimal performance

The TNC 620 features optimized motion control, short block processing times, and special control strategies, thus attaining very high machining speeds with exceptional contour accuracy, particularly during 3D contour machining.

Optimized motion control

The ADP function provides effective motion control optimization. ADP dynamically precalculates the contour, adapting the movements based on a jerk-smoothing acceleration limit. Perfect surfaces are attainable even with a highly variable point distribution.

Realistic simulations

Detailed graphical simulations provide a precise and realistic machining preview, revealing ahead of time whether all required program entries are in place, whether machining operations will run smoothly, and whether surfaces will attain the desired quality.

Optimized Contour Milling (OCM)

The OCM option optimizes roughing processes, using special trochoidal milling cycles to machine any countour with high efficiency. Productivity is significantly increased, while tool wear is considerably reduced. The optimal cutting data are determined by an integrated cutting-data calculator.

Component Monitoring

The Component Monitoring option protects machines by monitoring specifically for failure and damage. Continuous load monitoring of the spindle bearing and feed axes reliably detects wear and effectively prevents overloading.

Dynamic Precision

Dynamic Precision includes multiple functions that improve the contouring accuracy of machine tools, even during high feed rates and complex movements. Precise parts can be efficiently manufactured in short machining times without manual rework.

Contact person – Sales

International Sales

+49 8669 31-3142

internationalsales@heidenhain.de
Contact person – Service

Helpline for NC programming

+49 8669 31-3103

service.nc-pgm@heidenhain.de
Find your nearest representative

Application-oriented design

Accurate and convenient

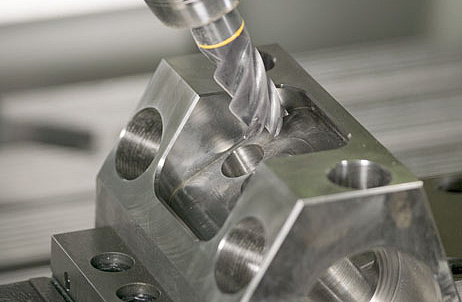

The TNC 620 from HEIDENHAIN is a compact and versatile contouring control. Applications range from 3-axis and 3+2-axis machining to 5-axis milling. The TNC 620 delivers optimal surface quality in short machining times thanks to functions such as Advanced Dynamic Prediction (ADP) and the Dynamic Precision package. KinematicsOpt allows complex parts to be made with reproducible accuracy over extended periods. From an everyday shopfloor perspective, the TNC 620 offers easy operation and extensive features.

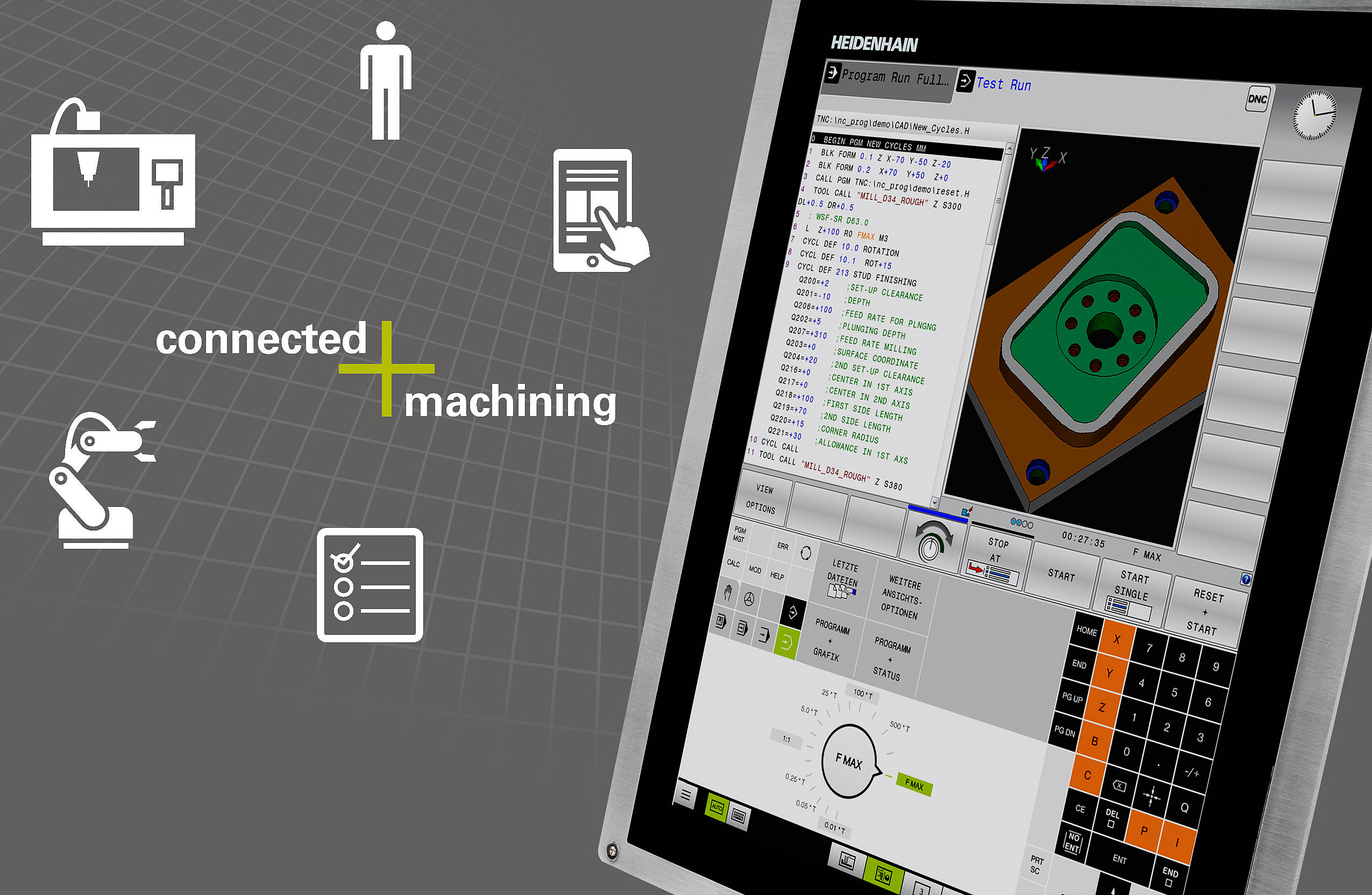

Easy connectivity

Easy data usage, time-saving workflows, and transparent processes: Connected Machining enables optimal connection to digital job and data management solutions in a manufacturing context. With the Connected Machining package of functions, HEIDENHAIN controls can be perfectly integrated into process chains through future-ready digital interfaces and flexible operating designs, thus optimizing the transfer of knowledge within your company. Connected Machining incorporates HEIDENHAIN controls into the purely digital job management landscape of a production network and places the user at the center of the digital job management process.

Connected Machining delivers:

  • Easy data usage
  • Time-saving workflows
  • Transparent processes

TNC 620: more efficient milling
