Machine tool analysis

HEIDENHAIN offers comparator encoders for the calibration and acceptance testing of machine tools. These modular sytems deliver very high measurement accuracies with optical scanning and a sturdy measuring standard. Robust and easy-to-use, they are well-equipped for frequent usage under shopfloor conditions.

KGM 200

  • Grid plate for in-plane linear motion
  • Circular interpolation test
  • Evaluation of controller parameters
Find out more

RVM 4000

  • Position accuracy of rotary axes
  • Easy mounting
  • Dynamic and high-resolution measurement
Find out more

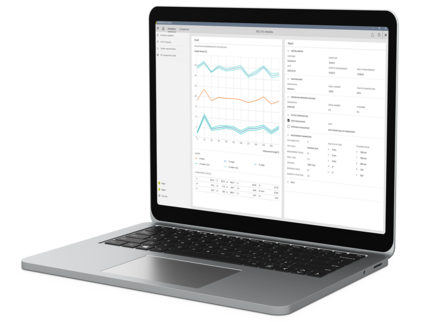

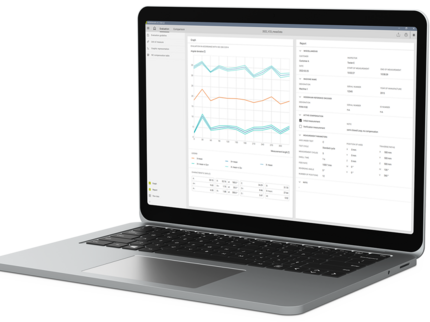

  • PC software for machine calibration
  • Standardized calibration and evaluation
  • Usable only with the RVM 4000 (at present)
Find out more
